Nominal Voltage:3.7V
Nominal capacity:117Ah
Working voltage:2.5V~4.2V
AC impedance resistance(1khz):≤1mΩ
Max. pulse charge / discharge current: 234A
Dimension: 300(L)*26(W)*93(H)mm
Weight: 1.67kg(No accessories)
Product Name:

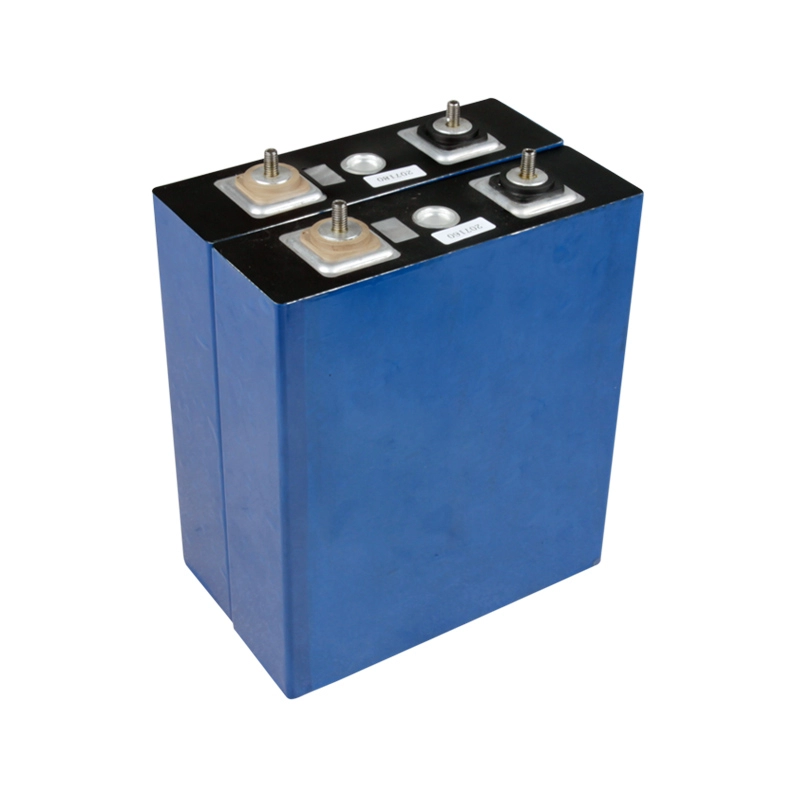

lithium battery cell 117ah 3.2v lithium prismatic battery cells NCM for solar storage
Highlights
Compared with traditional AGM/lead acid batteries, LiFePO4 battery/ Lithium iron phosphate batteries are:
Application
Energy Storage
--Solar-Wind Power System / City Grid (On/Off) / Community and Family
Back-up System and UPS
--Telcom Base / CATV system / Computer Server Center / Medical Instrumnt / Military Equipment
Other Applications
--Security and Electronics / Mobile POS, Mining Lihgt / Torch / LED Light / Emergency Light
--RV Motorhome /Golf Carts Battery / Boat Marine Yachts / Electric Skateboard
--LED Backup / Engine Starting Battery,etc.
Technical Parameters:
No. |
Items |
Specifications |
1 |
Nominal Voltage |
3.7V |
2 |
Nominal Capacity |
117Ah |
3 |
Standard Charge Current |
0.2C |
4 |
Max. Charge Current |
1C |
5 |
Continuous Discharge Current |
117A |
6 |
Peak Discharge Current |
234A |
7 |
Charge Cut-off Voltage |
4.2V |
8 |
Discharge Cut-off Voltage |
2.5V |
9 |
Inner Resistance |
1mΩ |
10 |
Weight |
1.67kg |
11 |
Dimension |
Length: 300mm Width: 26mm High: 93mm |
12 |
Operating Temperature |
Charging: 0°C ~ 45°C Discharging: -20°C ~ 55°C |
13 |
Storage Temperature |
optimal store temperature of 23 ± 5°C for long term storage |
14 |
Life Cycle |
>1000 times
|
There is no doubt that choosing LFP is the most cost effective, environmental way.
Come us at service@osnpower.com to get LiFePO4 catalog and quotations.
Packing and Shipping
Use high hardness custom PE foam to protect the battery
We offer a variety of shipping methods: sea, land, air
Related LiFePO4 Battery Cell
How To Find
the right deep cycle battery?
We provide 24 hours online service. Any interest, please contact service@osnpower.com for support and more information, our professionals will reply you ASAP. OSN POWER will provide you with a variety of lithium deep cycle batteries. We're here to help you find the right battery.
Electric Performance Curve
Advantages of Lithium ion battery
1.Long cycle life:1000times cycles
2.Small size and light weight:LiFePO4 battery size and weight is 1/3 of Lead acid battery
3.<1% low self-consuming rate
5.With advanced BMS
6.Built-in automatic protection for over-charge, over discharge, over current and over temperature control.
8.Pollution-free batteries are environmentally friendly.
Attentions:
For safety usage, please be careful on below:
Warning!
1. Do not immerse the battery in water and keep it dry when not in use;
2. Do not knock, throw or affect the battery near a fire source or under extremely hot conditions;
3. Please charge according to the charging requirements;
4. Do not reverse the positive (+) and negative (-) terminals;
5. Do not short-circuit the battery by connecting wires or other metal objects to the positive (+) and negative (-) terminals;
6. Do not directly weld the battery terminals.
